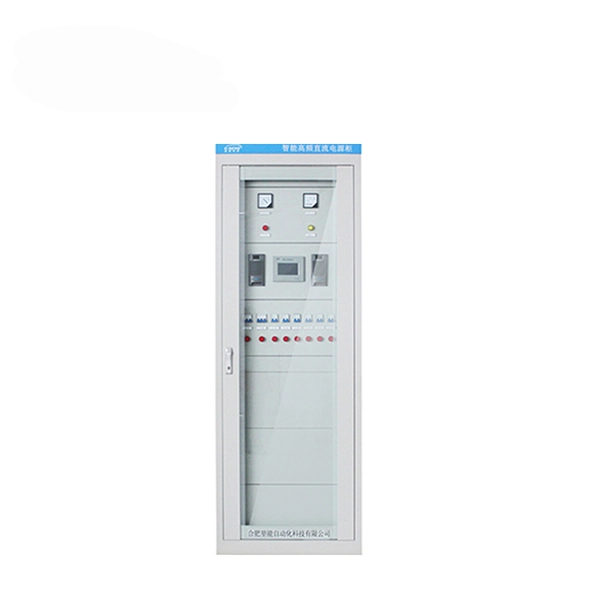

Distance between the back panel of the distribution box

The back panel of a distribution box should have sufficient clearance to allow safe installation, wiring, and maintenance, typically requiring at least a few inches of space behind the enclosure.

NEC and Installation Guidelines

According to the National Electrical Code (NEC), the working space in front of a panelboard must be at least 36 inches (914 mm) deep, but the code does not specify a strict minimum distance behind the panel; however, adequate space is required for wiring, grounding, and mounting. The wireway depth for through wiring beyond the front of the panel is limited to 6 inches, and any equipment in front should not extend more than 6 inches beyond the panel. This implies that the back of the panel should be mounted flush or with enough clearance to accommodate conduit, cable entry, and proper grounding.

Practical Installation Considerations

Wall Mounting: Most distribution boxes are mounted directly on a wall. Ensure the wall surface is flat and strong enough to support the box and internal components. Cable Access: Leave at least 2–4 inches behind the panel for cable entry, conduit connections, and to prevent pinching or damage to wires.

Ventilation and Safety: Adequate spacing behind the box helps prevent overheating and allows for inspection and maintenance. Material and Mounting: Distribution boxes are typically made of steel or thermoplastics. Ensure the mounting method allows the back panel to be securely fastened while maintaining the necessary clearance for wiring.

Summary

While the NEC focuses on front and side working space, installers should provide at least a few inches of clearance behind the distribution box to allow for safe wiring, conduit connections, and maintenance. This ensures compliance with safety standards and facilitates long-term reliability of the electrical system.
