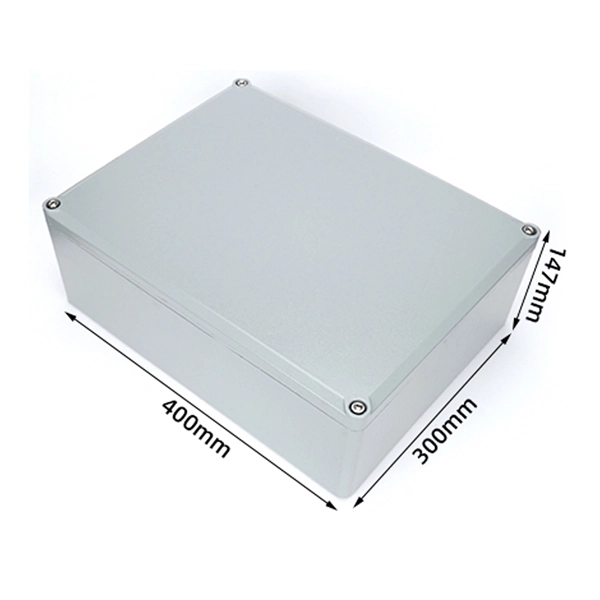

Sealing plug for explosion-proof distribution box

Fiber and communications infrastructure knowledge brief Published 08 Apr 2024

Prepared for preliminary research by the ROGER FIBRE knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Sealing plugs are essential components that seal unused holes in explosion-proof distribution boxes to prevent flame propagation and maintain enclosure integrity.

Purpose and Function

Sealing plugs, also known as stopping plugs or sealing fittings, are used to seal unused cable entries or conduit openings in explosion-proof enclosures. Their primary function is to prevent the propagation of flames or explosions from inside the enclosure to the external environment or to adjacent enclosures, ensuring safety in hazardous areas with flammable gases or dust. They also help maintain the tested volume of the enclosure, preventing overpressure that could damage the box during an internal explosion.

Types and Materials

Sealing plugs are available in a variety of thread types and materials to suit different applications: Thread types: Metric (M16–M100) or NPT (3/8–4"),. Materials: Plastic, nickel-plated brass, stainless steel, or aluminum. Sealing options: Some plugs include an O-ring seal for enhanced protection.

They can be used in Ex d (flameproof) and Ex e (increased safety) enclosures and are designed to comply with standards such as IEC 60079-1 and EN 60079-14.

Installation Guidelines

Proper installation is critical for safety: Plugs must be installed as close as possible to the enclosure wall, typically not exceeding the conduit size or 50 mm, whichever is smaller. The correct sealant or filling material provided by the manufacturer must be used to ensure flameproof integrity. Orientation may vary depending on the plug type: some are installed vertically (EYS series) or horizontally (EZS series), with designs allowing rotation for proper filling.

Non-compliance or improper installation can lead to flame propagation, increased pressure, and potential explosions, posing serious risks to personnel and equipment.

Selection Considerations

When selecting a sealing plug, consider: Thread compatibility with the enclosure or conduit. Material suitability for the environment (corrosion resistance, temperature range). Compliance with standards for hazardous locations (ATEX, IECEx, UL1203).

Size of the unused opening and number of conductors if applicable.

Summary

Sealing plugs are critical safety components for explosion-proof distribution boxes. They prevent flame propagation, maintain enclosure integrity, and ensure compliance with safety standards. Proper selection, material choice, and installation according to manufacturer instructions and relevant standards are essential to protect both personnel and equipment in hazardous areas.
