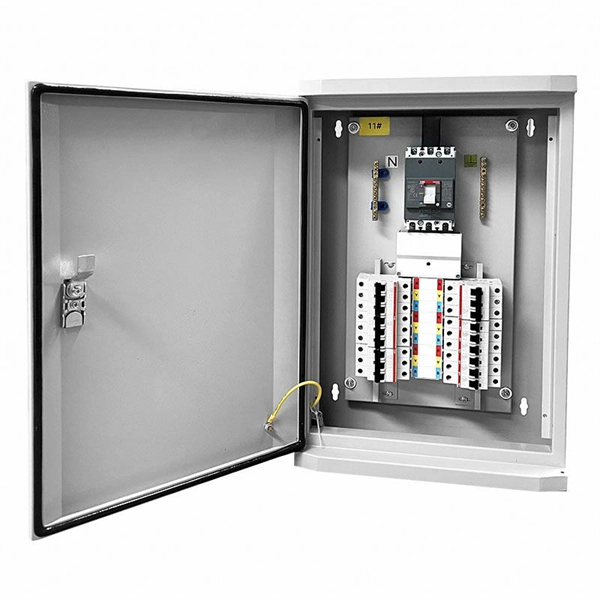

How to replace wires in a household electrical distribution box

Replacing wiring in a household distribution box requires careful planning, strict adherence to safety protocols, and proper connection of all circuits to ensure a safe and functional electrical system.

Safety First

Before starting any work, de-energize the circuit at the main breaker panel to prevent electric shock or fire hazards. Confirm the circuit is completely dead using a non-contact voltage tester and ensure the tester is functional by testing a known live outlet first. Always wear insulated gloves and use tools rated for electrical work.

Planning and Preparation

Assess the Existing System: Identify the types of wires, inspect the distribution box, and check outlets and switches for damage or overheating signs. Select Components: Choose appropriate circuit breakers, RCDs (residual current devices), surge protection, and wiring that meet local electrical codes, such as the DIN VDE 0100 series in Germany or NEC standards in the U. S..

Prepare Tools and Materials: Wire strippers, screwdrivers, drills, new wires, electrical boxes, and labeling materials are essential. Create a workspace that is organized and safe.

Replacing Wiring

Remove Old Wiring: Carefully disconnect and remove old wires, outlets, and switches. Dispose of damaged wires safely. Install New Electrical Boxes: Mount new boxes securely, ensuring they are level and properly ventilated.

Run New Wires: Route wires through walls and ceilings, avoiding sharp bends or damage. Label each wire according to its circuit to prevent confusion. Connect to Distribution Box: Attach wires to the correct terminals on the circuit breakers, neutral, and ground bars.

Follow the wiring diagram to ensure proper connections and circuit identification. Install Circuit Breakers and Protective Devices: Insert breakers, RCDs, and surge protection devices according to manufacturer instructions and code requirements.

Testing and Verification

After wiring is complete, perform insulation and continuity tests, check loop impedance, and verify that all protective devices function correctly. Use a multimeter or voltage tester to confirm that outlets and circuits are live and correctly wired. Only after passing all tests should the distribution box be energized.

Compliance and Permits

Ensure that all work complies with local electrical codes and obtain any necessary permits before starting. Improper installation can lead to fines, fire hazards, or the need to redo the work. Replacing wiring in a household distribution box is a complex and potentially dangerous task.

If you are not confident in your skills, it is strongly recommended to hire a licensed electrician to ensure safety and compliance.
