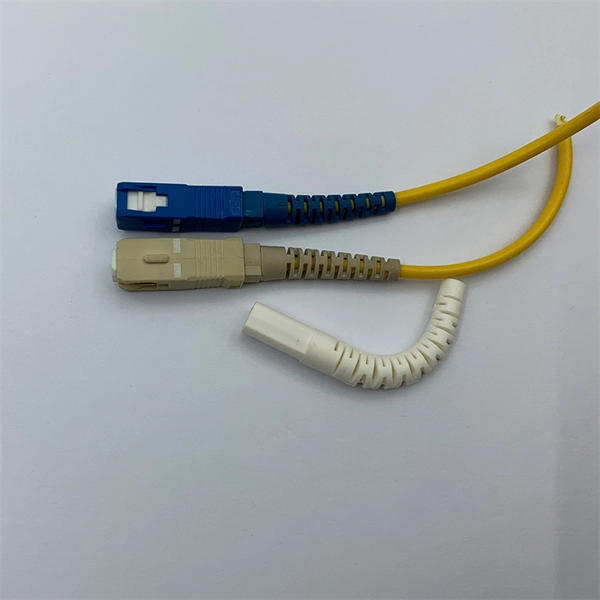

Coupler connection to fiber optic pigtail

Connecting a fiber optic pigtail coupler involves splicing the bare fiber end of the pigtail to the main fiber cable, then securing the connector into the coupler or patch panel for a low-loss, reliable connection.

Step-by-

Step Process1.

Prepare the Fiber Cable and Pigtail

Strip the outer jacket of the main fiber cable carefully to expose the bare fiber. Clean the fiber with isopropyl alcohol wipes to remove dust and debris. Cleave the fiber to create a precise, flat end for splicing.

Use a pre-tested, high-quality pigtail with a factory-polished connector on one end and a bare fiber on the other. 2. Splice the Pigtail to the Main FiberFusion Splicing (preferred for singlemode fibers): Align the bare fiber of the pigtail with the main fiber in a fusion splicer.

The splicer melts the fiber ends together to form a permanent, low-loss joint. Apply a heat-shrink sleeve over the splice for mechanical protection. Mechanical Splicing (alternative for multimode or temporary connections): Insert the fibers into a mechanical splice holder, ensuring precise alignment.

Lock the fibers in place and verify minimal signal loss. 3. Connect the Pigtail to the CouplerInsert the factory-terminated connector end of the pigtail into the fiber optic coupler or adapter.

Ensure the connector clicks or locks securely to maintain proper alignment. For multi-fiber setups, organize pigtails in a splice tray to prevent bending or stress on the fibers. 4.

Test the Connection

Use an OTDR (Optical Time-Domain Reflectometer) or a power meter to verify signal integrity and low insertion loss. Confirm that all spliced fibers meet the required performance standards before closing the enclosure.

Best Practices

Always work in a clean environment to prevent contamination. Use pre-tested pigtails to reduce installation errors. Avoid sharp bends or stress on the fibers to maintain long-term reliability.

Label each pigtail and port for easy identification in the network. By following these steps, you ensure a reliable, low-loss connection between your fiber optic pigtail and the coupler, suitable for data centers, FTTH deployments, or telecom networks.
