Fiber optic connection to switch patch cord

Connecting a fiber optic patch cord to a switch requires matching fiber type and connector type, careful insertion, and proper testing to ensure low-loss, reliable network performance.

Selecting the Right Fiber Patch Cord

Fiber Type: Choose between single-mode (OS1/OS2) for long-distance connections or multimode (OM1/OM2/OM3/OM4/OM5) for short-distance, intra-data center links. Single-mode supports higher bandwidth over kilometers, while multimode is suitable for hundreds of meters. Connector Type: Ensure the patch cord connectors match both the switch and patch panel ports.

Common types include LC (small form factor, duplex), SC (snap-in), FC (screw-on), and ST (bayonet). Cable Jacket: Select the appropriate jacket material for your environment: LSZH for indoor plenum spaces, OFNP for fire-resistant plenum, or PE for outdoor use.

Step-by-

Step Connection Process

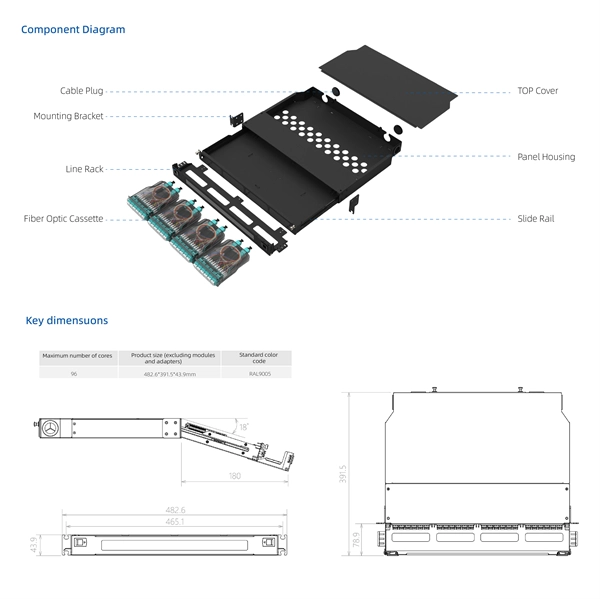

Inspect and Prepare: Remove protective caps from the patch cord and inspect the fiber ends for dirt or scratches. Clean if necessary to prevent signal loss. Connect to Patch Panel: Insert one end of the patch cord into the corresponding port on the fiber patch panel.

Ensure it clicks or locks securely. Connect to Switch: Insert the other end into the switch port, matching the connector type. Confirm a secure connection.

Repeat for Multiple Ports: If connecting multiple fibers, repeat the process for each port, maintaining proper labeling and organization. Power On and Test: Turn on the switch and check link lights. Use a fiber optic tester to verify signal integrity and ensure minimal attenuation.

Best Practices

Avoid sharp bends or physical stress on the fiber to prevent attenuation or breakage. Maintain proper cable management to reduce strain and facilitate future maintenance. Use color-coded cables and labels to simplify identification and troubleshooting.

Ensure compatibility between transceivers, patch cords, and switch ports to prevent signal loss. By following these steps and selecting the correct fiber type and connectors, you can achieve a reliable, high-performance connection between your fiber patch panel and network switch.
