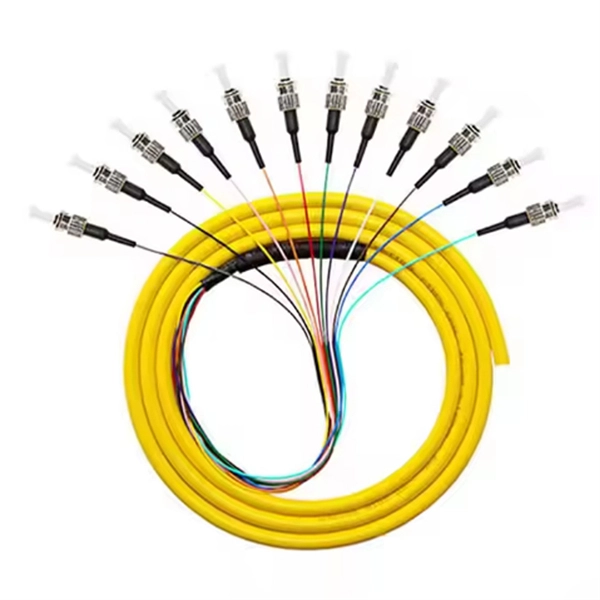

How many cores does an optical cable need at least

At least 2 cores are needed in an optical cable—one for sending and one for receiving data.

Core Requirements

The minimum number of cores in an optical fiber cable is generally two, as each device typically requires one core for transmitting and one for receiving data. This is the basic duplex configuration used in most network setups. In practice, additional cores are often included for redundancy or future expansion, which can increase the total core count by 10–20%.

Industry StandardsIBDN standard recommends 12-core cables for communication rooms within buildings and 24-core cables for main distribution rooms. For small setups or point-to-point connections, a 4-core cable may be used to allow for redundancy while keeping costs low.

Factors Affecting Core Count

Number of Devices: Each device generally uses 2 cores. If you have 3 devices, a 6-core cable may be used to include redundancy. Redundancy: Extra cores are often reserved to maintain network reliability in case of fiber failure.

Communication Mode: Serial communication or device multiplexing can reduce the number of cores needed. Fiber Type: Single-mode fibers are preferred for long-distance transmission and typically carry one channel per core, while multi-mode fibers can carry multiple channels per core over shorter distances.

Practical Recommendations

For small office or campus links, duplex (2-core) or 12-core cables are common, allowing for some spare cores. For data centers or larger networks, 12-, 24-, or 48-core cables are standard to accommodate multiple devices and future growth. Always consider future expansion and spare capacity (10–20%) to avoid costly cable replacements later.

In summary, while 2 cores are the absolute minimum, most practical installations use 4, 12, or more cores depending on redundancy, device count, and future scalability.
