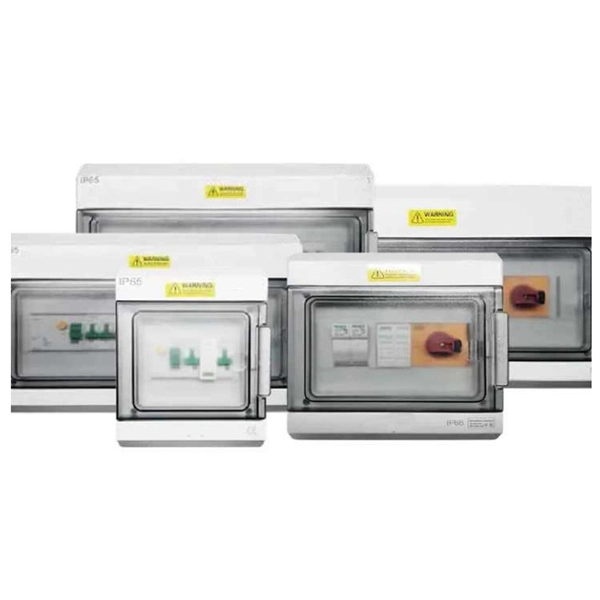

How to connect wires in a home electrical distribution box

To safely connect wires to a home distribution box, first turn off the main power, then connect the incoming live and neutral wires to the main terminals, install circuit breakers, and wire outgoing circuits according to load requirements.

Step-by-

Step Guide1. Safety First Always ensure the main power supply is turned off before starting any work to prevent electrical shock. Use insulated tools and wear protective gear while handling wires and terminals.

2. Mount the Distribution Box Secure the distribution box to a wall at an accessible height, ensuring the installation site is free of obstructions. 3.

Connect the Main Supply

Identify the incoming live (typically brown or red) and neutral (blue or black) wires from the energy meter. Connect the live wire to the main terminal or main MCB (usually a double-pole MCB for single-phase systems). Connect the neutral wire to the neutral bus bar.

4.

Install Circuit Breakers

Place single-pole MCBs for individual room circuits or appliances in the designated slots. For special high-load appliances, double-pole MCBs may be used. Install an RCCB (Residual Current Circuit Breaker) to protect against leakage currents and electrical shocks.

The RCC

B rating should match the main MCB, typically 30mA for domestic installations. 5.

Connect Outgoing Circuits

Connect each outgoing live wire to its corresponding MCB. Connect the neutral wires to the neutral bus bar. Ensure all wires are properly labeled for easy identification and future maintenance.

6.

Check Connections

Tighten all terminals securely to prevent loose connections. Use a multimeter to verify continuity and ensure there are no short circuits. 7.

Wire Sizing and Load Considerations

Choose wire sizes according to the load of each circuit. Larger loads require thicker wires to prevent overheating. Copper wires are preferred for their high conductivity and durability, while aluminum can be used with proper sizing.

8.

Final Testing

After all connections are made, turn on the main supply and test each circuit individually. Verify that the MCBs and RCCB function correctly and that all appliances receive power safely. By following these steps, you can ensure that your home distribution box is wired safely and efficiently, providing reliable power distribution throughout your home.
