What is the splicing principle of pigtails and patch cords

Fiber optic pigtails are spliced to backbone fibers to create permanent, low-loss connections, while patch cords use plug-and-play connectors for flexible, temporary connections.

Fiber Pigtails and Splicing

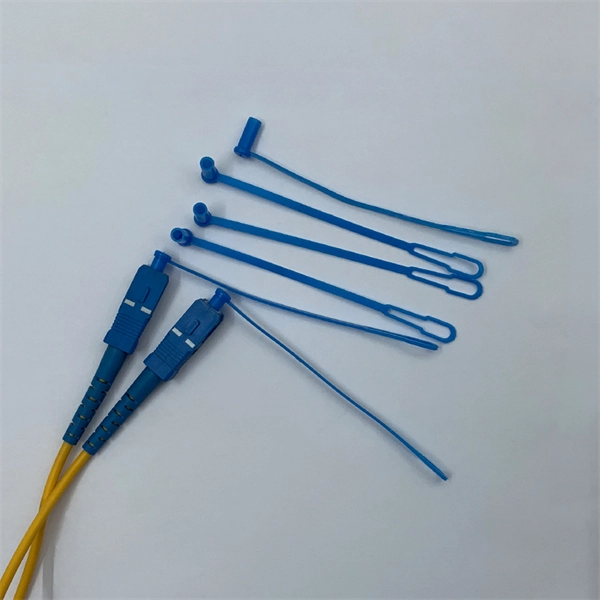

A fiber optic pigtail is a short fiber assembly with a connector on one end and a bare fiber on the other. The bare end is designed for fusion splicing, a process where the pigtail fiber is permanently joined to a backbone or multi-core fiber. Fusion splicing aligns the fiber cores precisely and fuses them using heat, creating a continuous optical path with minimal signal loss and high long-term stability.

Pigtails are typically short (0. 5–2 meters) and are used in distribution frames, terminal boxes, or closures to provide a clean, low-loss interface for network equipment. The splicing process involves: Stripping the protective coating from the fiber.

Cleaving the fiber to create a flat, smooth end. Aligning the fiber cores in a fusion splicer. Fusing the fibers with an electric arc to form a permanent joint.

Protecting the splice with a heat-shrink sleeve or splice tray. This method avoids air gaps and end-face errors common in connector mating, ensuring efficient signal transmission.

Patch Cords and Connector Mating

A fiber patch cord is a fiber assembly with connectors on both ends, designed for plug-and-play connections between devices, patch panels, or optical distribution frames. Unlike pigtails, patch cords are not spliced; they rely on mechanical mating of connectors, which allows for easy disconnection and reconfiguration. Patch cords are flexible in length, ranging from less than a meter to tens of meters, and are used for device-to-device or panel-to-panel connections.

Key points about patch cords: Enable quick installation and maintenance. Suitable for frequent plugging and unplugging. Connector quality and jacket durability are critical for performance and reliability.

Summary of DifferencesFeaturePigtailPatch CordEndsConnector + bare fiberConnector + connectorConnection MethodFusion splicing (permanent)Connector mating (temporary)LengthShort (0. 5–2 m)Flexible (0. 5–50+ m)Use CaseTermination of backbone fibers, low-loss interfaceDevice interconnection, patch panels, flexible routingStabilityHigh, minimal lossModerate, depends on connector qualityFlexibilityLow (permanent)High (plug-and-play)In essence, pigtails are used to create stable, permanent connections via splicing, while patch cords provide flexible, easily reconfigurable connections in optical networks.
