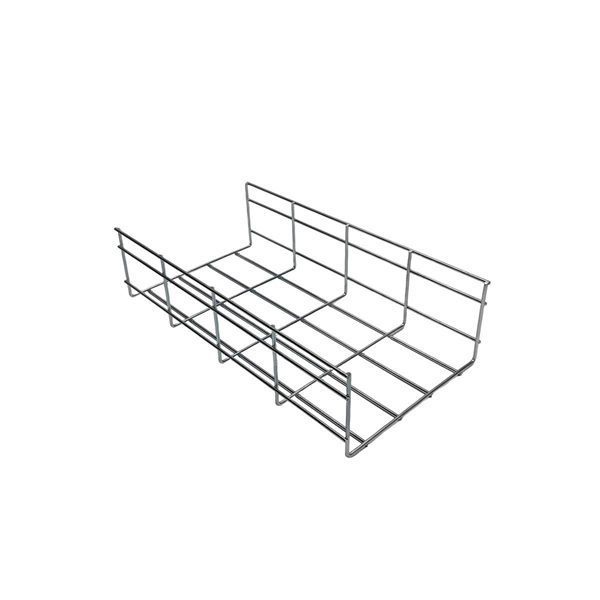

Connectors installed inside cable trays

Cable tray connectors include couplers, splice plates, reducers, and fittings that join tray sections and ensure structural continuity. Types of Cable Tray Connectors1.

Couplers/

Connectors: These are used to join two straight sections of cable tray securely, maintaining alignment and structural strength in the system. They are essential for extending tray runs and ensuring mechanical and electrical continuity. 2.

Splice Plates: Flat metal plates that connect the ends of two tray sections. They are bolted to the tray side rails to provide a rigid and stable connection, often used in ladder, solid, or ventilated trays. 3.

Reducers: These connectors allow the transition between cable trays of different widths, enabling efficient load distribution and smooth routing from a main run to a branch run. 4. Fittings (Elbows, Tees, Crosses, Risers): While primarily used to change direction or create branches, these fittings also act as connectors by linking tray sections at angles or elevations.

Horizontal and vertical bends, tees, and crosses are common examples. 5.

Covers and Hold-

Down Clamps: Though not connectors in the traditional sense, covers are secured to trays using clamps, which ensure the tray system remains closed and protected, indirectly contributing to the integrity of the connected sections.

Materials and Considerations

Connectors are typically made from galvanized steel, aluminum, stainless steel, or FRP, depending on environmental conditions and load requirements. Proper selection ensures compatibility with the tray type, maintains grounding continuity, and supports the mechanical load of the cables.

Summary

In a cable tray system, connectors such as couplers, splice plates, reducers, and fittings are critical for joining sections, adapting sizes, and changing directions. Using the correct connectors ensures a safe, durable, and efficient cable management system while maintaining compliance with industry standards.
