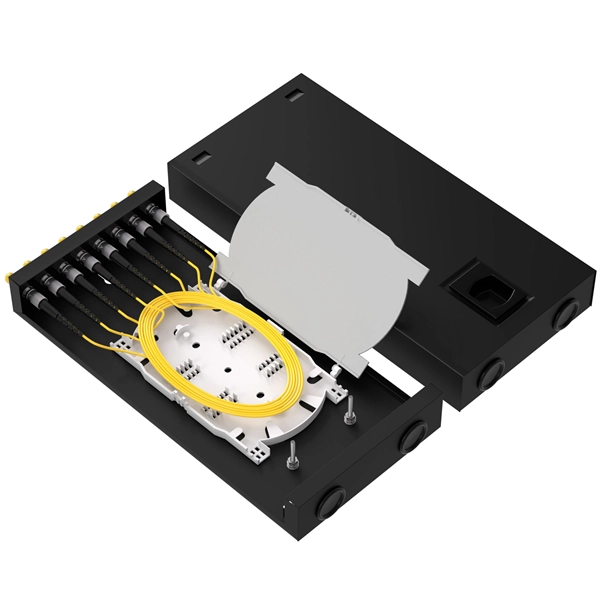

Fiber Optic Cable Junction Box Repair

Repairing a fiber optic junction box involves locating the fault, preparing the fibers, splicing them using mechanical or fusion methods, and testing for low-loss connectivity. Step 1: Safety and PreparationBefore starting, ensure proper safety protocols and gather necessary tools: fiber cutters, strippers, cleavers, fusion splicer or mechanical splice kit, OTDR (Optical Time Domain Reflectometer), alcohol wipes, and protective sleeves. Inspect the junction box for visible damage, moisture, or contamination, and clear the workspace to prevent accidental fiber breakage.

Step 2: Fault LocationUse an OTDR to identify the exact location of the fiber break or high-loss point within the junction box. This device sends light pulses through the fiber and measures reflections, allowing precise detection of internal faults that may not be visible externally. Step 3: Cable PreparationCarefully open the junction box and expose the damaged fiber section.

Remove the outer jacket and Kevlar strength members without nicking the fiber core. Strip the protective coating to expose the bare fiber. Clean the fiber with alcohol and lint-free wipes to remove contaminants.

Step 4: Fiber SplicingChoose between mechanical splicing or fusion splicing: Mechanical Splicing: Aligns fiber ends in a precision sleeve with index-matching gel. Quick and does not require heat, but may have slightly higher signal loss. Fusion Splicing: Uses a fusion splicer to precisely align and melt fiber ends together, creating a permanent, low-loss connection (typically
