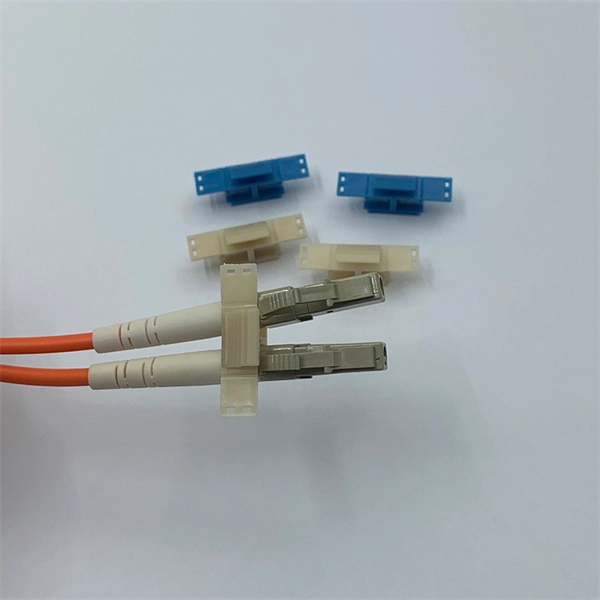

The representation method of optical fiber cable

Optical fiber cables are represented in diagrams using distinct line symbols and labels, while their physical structure is depicted through layered components including core, cladding, coating, strengthening, and outer jacket.

Graphical Representation in Schematics

In engineering and network diagrams, fiber optic cables are depicted differently from electrical cables to indicate their non-electrical nature. Common conventions include: Line Style: Dashed, broken, or dash-dot patterns represent the light-carrying path, differentiating it from solid lines used for copper or coaxial cables. Text Labels: Abbreviations like “FO” or “F.

O.” are placed alongside the line, often with additional details such as fiber count and type (e.g., “12F SM” for 12-fiber single-mode),. Component Symbols: Connectors or splices are often shown with hollow circles or “X” marks to indicate where the light path is joined or interrupted. These conventions are standardized by organizations such as the TIA to ensure clarity in both premises and outside plant drawings.

Physical Structure Representation

Optical fiber cables are typically illustrated in cross-sectional diagrams showing their layered construction: Core: The central strand of glass or plastic that carries light signals. Core diameters vary depending on fiber type, e.g., 5–9 µm for single-mode fibers. Cladding: Surrounds the core with a lower refractive index to maintain total internal reflection, keeping light within the core.

Buffer Coating: A protective layer, often made of plastic or silicon rubber, that shields the fiber from mechanical damage. Strengthening Elements: Materials such as aramid yarn or a central strength member protect the fiber from tension, crushing, and bending stresses. Outer Jacket: The external layer that protects the cable from environmental hazards like moisture, UV exposure, and abrasion.

In loose-tube designs, multiple fibers are placed inside gel-filled tubes wound helically around a central strength member. This helical winding allows the fibers to remain strain-free during installation and thermal expansion.

Summary

The representation of optical fiber cables combines graphical symbols for schematics and layered structural diagrams for physical understanding. Graphical conventions ensure clear differentiation from electrical conductors, while structural depictions highlight the protective and functional layers that enable high-performance, long-distance data transmission.
