Dual-wavelength optical cable fault

Dual-wavelength optical cable faults often arise from wavelength-dependent loss, connector issues, bends, or splices, and can be diagnosed using OTDRs, visual fault locators, and optical power meters.

Causes of Dual-

Wavelength FaultsWavelength-dependent loss occurs when a fiber exhibits different attenuation at different wavelengths, often worse at longer wavelengths. This can be caused by microbends, macrobends, or tight loops in the cable, which allow light to leak from the core and increase attenuation, particularly for higher wavelengths like 1310nm or 1550nm. Other common causes include: Connector and splice issues: Poor field terminations, misalignment, or contamination on connector end faces can create losses that vary with wavelength.

Physical damage: Kinks, pinches, or crushed sections of the fiber can produce discrete loss events visible on OTDR traces. End-face geometry problems: Incorrect polish angles or apex offsets can increase insertion loss and reflectance, affecting different wavelengths differently.

Detection and Troubleshooting Methods

Optical Time-

Domain Reflectometer (OTDR): OTDRs inject pulses into the fiber and measure backscattered light to locate faults such as bends, splices, or breaks. Dual-wavelength testing allows identification of wavelength-dependent losses and ensures accurate fault localization. Visual Fault Locator (VFL): A VFL emits visible red light (typically 650nm) to quickly identify breaks, bends, or poorly connected fibers.

It is particularly useful for short runs or accessible cable sections. Optical Power Meters (OPM) and Light Sources: Using stable light sources at multiple wavelengths (e.g., 850nm, 1310nm, 1550nm) in combination with OPMs helps measure insertion loss and detect abnormal attenuation across wavelengths.

Connector and End-

Face Inspection: Fiber microscopes can detect contamination, scratches, or improper mating that may cause wavelength-specific losses.

Troubleshooting Steps

Inspect and clean connectors to remove dust, fingerprints, or oil. Check for bends or kinks and re-route fibers to respect minimum bend radius. Test with OTDR at multiple wavelengths to identify wavelength-dependent loss and locate discrete faults.

Replace or re-splice damaged sections if high loss or reflection is detected. Verify polarity and connector types to ensure proper mating and minimize reflectance. SummaryDual-wavelength optical cable faults are typically caused by bends, connector issues, splices, or contamination, and manifest as wavelength-dependent loss.

Effective troubleshooting requires a combination of OTDR testing, VFL inspection, optical power measurement, and connector end-face analysis to accurately locate and resolve faults, ensuring reliable fiber optic performance across all operating wavelengths.

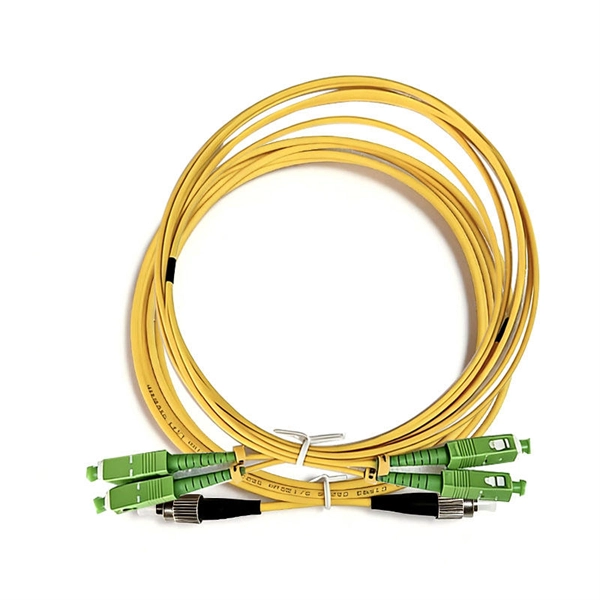

Dual-wavelength optical cable fault
