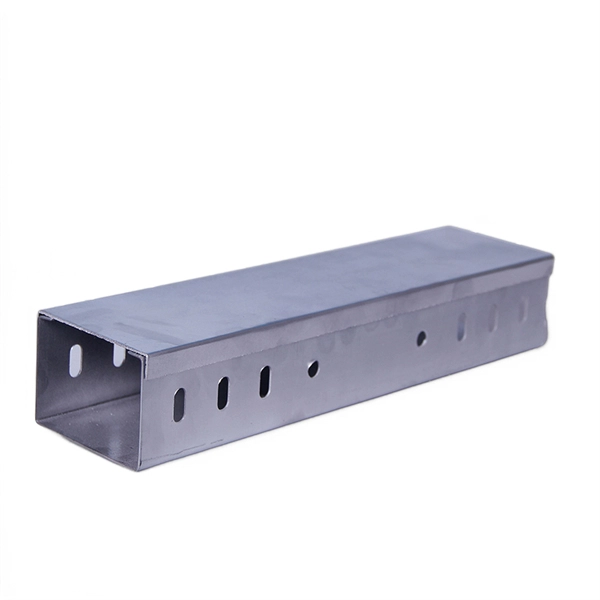

Fireproof cable trays are available in various materials and fire-resistance ratings, with specifications including load capacity, dimensions, and installation type.

Fireproof Cable Tray Specifications

Model / TypeMaterialFire ResistanceLoad CapacityDimensionsInstallation TypeNotesYMzK-FB 90 E30 4x1. 5SteelE30 (30 min)4x1. 5 mm²Standard ladder widthCeiling / WallEAE Group, ISO certified production SMzK-FB 30-60 E30 4x16SteelE30 (30 min)4x16 mm²Ladder width 30–60 mmCeiling / WallEAE Group, fire-resistant system JS(st)H-FB 30-60 E30 1X2X0.

8+0. 8SteelE30 (30 min)1x2x0. 8+0.

8 mm²Ladder width 30–60 mmCeiling / WallEAE Group, suitable for light cables Pultruded FRP Ladder TrayFiberglass Reinforced Plastic (FRP)Fireproof, self-extinguishingWorking load per design, factor of safety 1. 5Custom lengths, standard ladder widthsCeiling / Wall / FloorReal Safety, corrosion-resistant, lightweight, ISO 9001 certified Legrand Fire-Resistant TraySteel / Galvanized SteelComplies with EN 61537, fire-rated per local standardsVaries by modelLadder / Perforated / SolidCeiling / WallCE marked, UL/NEMA certified, tested for overheating and fire ABB Steel Cable TrayPre-galvanized / Hot-dip galvanized steelFire-resistant per EN / ISO standardsVaries by span and rung spacingLadder / Channel / Wire meshCeiling / WallCorrosion-resistant, suitable for industrial environments Key ConsiderationsMaterial Selection: Steel trays offer high mechanical strength and fire resistance, while FRP trays provide corrosion resistance and lightweight handling.

Fire Rating: E30 indicates 30 minutes of fire resistance; other ratings may be available depending on local standards. Load Capacity: Always verify the working load against cable weight and safety factor (typically 1. 5 for FRP trays),.

Installation: Ceiling, wall, or floor mounting depends on the tray type and building design. Ladder trays are common for heavy cables, while perforated or solid trays are used for heat-sensitive or aesthetic applications. Compliance: Ensure trays are CE marked or certified by UL, NEMA, or local authorities to meet fire and safety regulations.

This table provides a comprehensive overview of local fireproof cable tray models, covering material, fire resistance, load capacity, and installation suitability, helping engineers and designers select the appropriate system for electrical installations.
