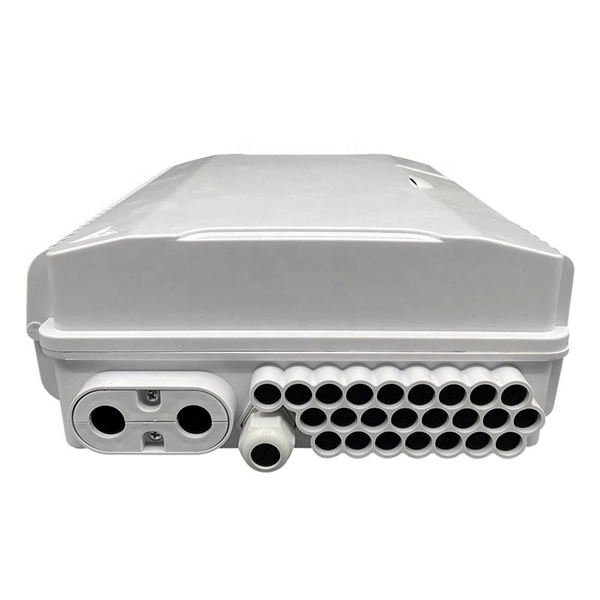

Installation location of pole-mounted distribution box

A pole-mounted distribution box should be installed with proper site preparation, secure mounting, correct wiring, and thorough testing to ensure safety and reliable operation.

Site Preparation and Selection

Choose a dry, accessible location on the pole, away from water, flammable materials, or corrosive substances. Ensure the pole is structurally sound and can support the weight of the distribution box and any attached equipment. Leave sufficient space around the box for ventilation and maintenance, and select a height that allows safe access for operation and inspection, typically around 1.

5 meters for residential setups, or adjusted for industrial requirements.

Mounting the Distribution Box

Select the appropriate mounting method: Use a horizontal bracket for cross-arm mounting, a vertical bracket under an insulator, or a combination bracket for pole strapping. Secure the box: Align the box with the mounting surface, attach expansion bolts or straps, and ensure it is stable and level. Avoid any inclination or looseness.

Check enclosure protection: Ensure the box has the correct IP or NEMA rating for outdoor exposure, protecting against dust, water, and UV damage.

Wiring and Electrical Connections

Prepare wires: Strip insulation to expose the correct conductor length, ensuring proper gauge for the load. Install circuit breakers: Use independent breakers for each circuit, selecting types that provide discrimination with downstream devices. For SPB1 enclosures, curve 1 QF breakers are recommended.

Terminate connections: Connect line to line, neutral to neutral, and ground to ground, following color coding standards. Secure wires with screws or wire strippers, and ensure neat cable management with ties. Include protective devices: Install fuses, surge protectors, or additional breakers as required to safeguard circuits.

Testing and Verification

Visual inspection: Check for proper mounting, secure connections, and absence of exposed conductors. Insulation resistance test: Use a qualified tester to verify insulation integrity between wiring and the box, ensuring readings meet or exceed standards. Operational check: Confirm that breakers and switches operate correctly, and that indicators show ON/OFF status clearly, especially for pole-mounted units with external slide mechanisms.

Maintenance and Labeling

Label circuits clearly for future troubleshooting and maintenance. Schedule regular inspections to ensure long-term reliability and compliance with local electrical codes. Keep documentation of installation details for reference during upgrades or inspections.

By following these steps, a pole-mounted distribution box can be installed safely, efficiently, and in compliance with electrical standards, ensuring reliable power distribution and protection for connected circuits.
