What are the acceptance loss standards for optical cables

The allowable loss in optical fiber cables depends on fiber type, wavelength, and components, with typical values ranging from 0. 3–0. 75 dB per connector, 0.

1–0. 3 dB per splice, and 0. 3–3.

5 dB/km for the fiber itself.

Component Loss Guidelines

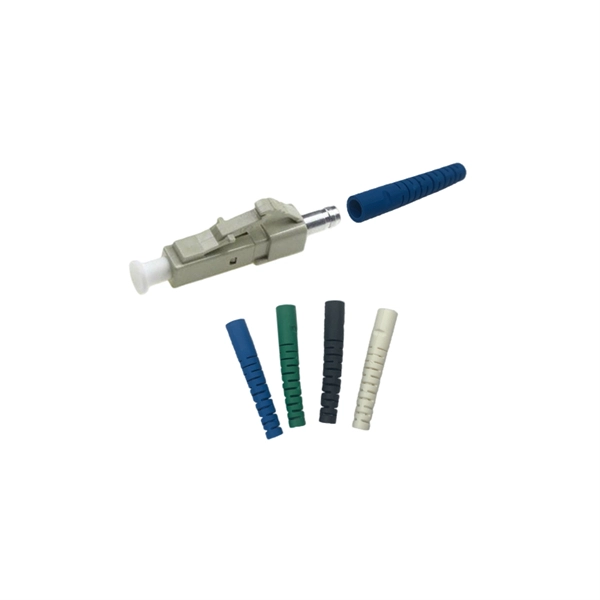

Connectors: Standard mated connector pairs should not exceed 0. 75 dB, while high-quality reference-grade connectors can achieve 0. 1–0.

2 dB loss. When a reference-grade connector is mated to a standard-grade connector, the limit is typically 0. 3 dB for multimode and 0.

5 dB for singlemode fibers. Splices: Fusion splices generally produce less than 0. 1 dB, with a planning value of 0.

3 dB per splice to allow margin. Mechanical splices may have slightly higher losses, around 0. 3 dB for multimode and 0.

15 dB for singlemode. Fiber Cable: Loss depends on fiber type and wavelength. Typical values are: Multimode fiber: 3.

5 dB/km at 850 nm, 1. 5 dB/km at 1300 nm. Singlemode fiber: 0.

4 dB/km at 1310 nm, 0. 3 dB/km at 1550 nm.

Calculating Total Link Loss

The total allowable loss for a fiber link is determined by summing the expected losses of all components (connectors, splices, and fiber) and comparing it to the power budget of the network equipment. This is known as the loss budget. If measured insertion loss exceeds the calculated budget, segment-by-segment testing is recommended to identify high-loss points.

Example Calculation

For a multimode link with: 2 connectors (0. 5 dB each)1 splice (0. 3 dB)100 meters of fiber at 850 nm (0.

1 dB per 30 m ≈ 0. 33 dB) Total expected loss: 0. 5 + 0.

5 + 0. 3 + 0. 33 ≈ 1.

63 dB. The measured loss should not exceed this value significantly.

Practical Considerations

Always clean and inspect connectors to avoid excessive loss due to dirt or damage. Avoid tight bends in the fiber, which can increase attenuation. Use manufacturer specifications and standards (TIA-568, ISO/IEC) to determine acceptable loss for specific applications.

Loss budgets may vary depending on Ethernet speed, equipment sensitivity, and network design. By following these guidelines, installers and technicians can ensure that optical fiber links meet performance requirements and maintain reliable network operation.
