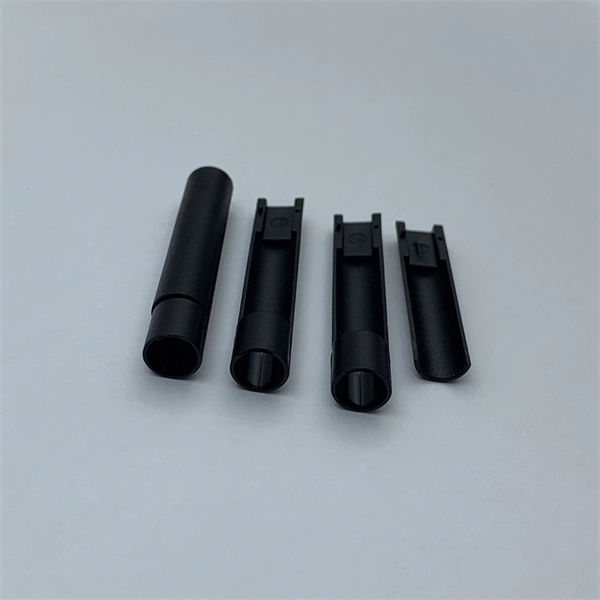

Method for making communication cable junction boxes

Communication cable junction boxes are manufactured by selecting appropriate materials, forming the enclosure, and assembling internal components to safely house and protect cable connections.

Materials and Design

Junction boxes are typically made from plastic, metal, or a combination of both, depending on the intended environment. Plastic boxes, often made from polypropylene or polycarbonate, are lightweight and corrosion-resistant, while metal boxes provide higher mechanical strength and grounding capabilities. The design can vary: standard square or rectangular boxes for indoor use, weatherproof boxes for outdoor applications, floor boxes for commercial centers, and ceiling boxes for lighting or fan connections.

Manufacturing Process

Material Preparation: Raw plastic or metal is prepared and molded into the box shape using injection molding for plastics or sheet metal forming for metal boxes. Enclosure Formation: The box body and lid are formed separately, ensuring precise dimensions for cable entry points, mounting holes, and internal supports. Surface Treatment: Metal boxes may undergo powder coating or galvanization to prevent corrosion, while plastic boxes are often UV-stabilized for outdoor durability.

Assembly of Internal Components: Internal supports, insulation barriers, and grounding points are installed. Cable entry points are fitted with grommets or seals to prevent dust and moisture ingress. Quality Control: Each box is inspected for dimensional accuracy, sealing integrity, and mechanical strength.

Weatherproof boxes are tested for water and dust resistance.

Cable Connection and Installation

Once manufactured, junction boxes are used to connect and protect communication cables. The process includes: Isolation and preparation of cable ends: stripping insulation, cleaning, and ensuring dry conductors. Mechanical connection of conductors: using crimped ferrules or connectors while maintaining color coding.

Sealing and protection: applying resin, heat-shrink tubing, or other fillers to secure connections and prevent moisture ingress. Mounting: Boxes are installed using pre-embedded anchor bolts or mounting brackets, ensuring stability and accessibility for maintenance.

Safety and Standards

Junction boxes are designed to prevent accidental contact with live wires, protect connections from environmental hazards, and comply with local electrical standards. Weatherproof and high-voltage boxes often follow DL/T 1263-2013 or equivalent standards for insulation, sealing, and mechanical strength.

Summary

The method for making communication cable junction boxes involves material selection, molding or forming the enclosure, assembling internal supports, and preparing cable connections. Proper sealing, grounding, and adherence to safety standards ensure reliable and long-lasting performance in both indoor and outdoor environments.
