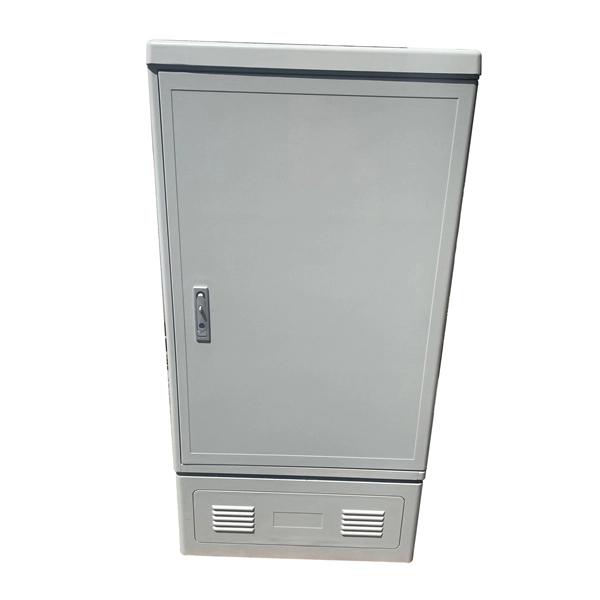

Insultation on installing distribution boxes

Proper insulation in distribution boxes is critical for electrical safety, mechanical stability, and long-term reliability, achieved through correct installation of busbar support insulators and insulation testing.

Busbar Support Insulators

Busbar support insulators are essential components that electrically isolate busbars and maintain correct clearance and creepage distances inside a distribution box. They are typically made from materials like DMC (Dough Molding Compound) or BMC, which provide excellent electrical and mechanical performance. Proper installation ensures that busbars remain aligned, mechanically stable, and free from overheating or short circuits.

Installation Guidelines: Confirm the insulator matches the system's rated voltage and current. Ensure the height meets clearance and creepage requirements. Verify that mounting holes and thread sizes are compatible.

Mount the insulator on a clean, flat surface and fasten evenly to avoid tilting or stress. Position busbars evenly according to length, weight, and current rating. Avoid using insulators of different heights together, as this can cause uneven alignment and mechanical stress.

Inspection and Maintenance: Perform visual and mechanical inspections after installation to check alignment, fastening, and clearance. Periodically inspect for looseness, cracks, discoloration, or overheating during routine maintenance.

Insulation Resistance Testing

After installing the distribution box, it is crucial to perform insulation resistance tests using a megohmmeter (typically 500 volts). Key tests include: Between phasesBetween phase and groundBetween phase and neutralBetween neutral and ground These tests verify that insulation is intact and prevent potential electrical faults or leakage currents.

Additional Best Practices

Ensure the installation surface is dry, flat, and free of debris. Maintain adequate spacing around the box for ventilation and future maintenance. Use personal protective equipment such as insulating gloves and safety glasses during installation.

Follow local and international standards (IEC, NEC, or national codes) for insulation, grounding, and wiring. Proper attention to insulation during installation not only ensures safety and compliance but also extends the service life of the distribution system and reduces the risk of electrical hazards.
