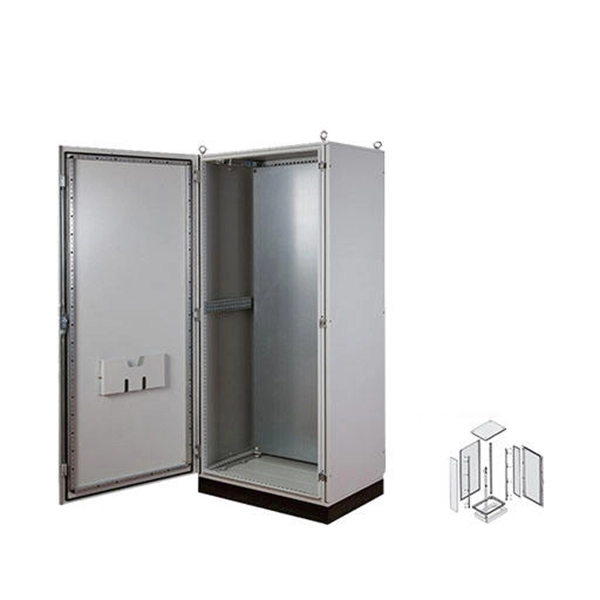

A primary distribution box connects to several secondary distribution boxes

A primary distribution box receives power from a transformer and distributes it to multiple secondary distribution boxes, which then supply power to specific buildings or areas.

Overview of Distribution Hierarchy

A primary distribution box acts as the main distribution point for a site or project. It is typically connected to the low-voltage side of a transformer (commonly 0. 4 kV) and does not supply power directly to end-use equipment.

Instead, it routes electricity to secondary distribution boxes, which serve individual buildings, floors, or specific areas. Secondary boxes then supply power to tertiary boxes or directly to equipment, depending on the system design.

Functions and Equipment

Primary Distribution Box: Receives power from the transformer and distributes it to secondary boxes. Contains isolating switches, circuit breakers, and residual current devices (RCDs) for protection. Handles three-phase power and is designed for high-capacity loads.

Often features copper busbars for optimal conductivity and may be rainproof for outdoor installations. Secondary Distribution Box: Receives power from the primary box and supplies it to specific buildings, floors, or equipment clusters. Equipped with larger three-phase circuit breakers to manage the load of connected equipment.

Ensures local control and protection, forming part of a multi-tier safety system. Can be designed for both indoor and outdoor use, often with powder-coated exteriors and rainproof tops.

Operational Flow

Transformer to Primary Box: Medium-voltage power from the transformer is stepped down and delivered to the primary distribution box. Primary to Secondary Boxes: The primary box distributes power through feeders or outgoing lines to multiple secondary distribution boxes.

Secondary to End-

Use: Secondary boxes supply power to tertiary boxes or directly to equipment, ensuring proper voltage, phase, and protection for end-users.

Key Considerations

Voltage Levels: Primary boxes operate at medium voltage (typically 0. 4 kV), while secondary boxes provide low-voltage power suitable for equipment or household use. Protection: Both primary and secondary boxes include circuit breakers and RCDs to prevent overloads and electrical hazards.

Scalability: A single primary box can connect to multiple secondary boxes, allowing flexible distribution across large sites or multiple buildings. This hierarchical setup ensures efficient, safe, and reliable power distribution from the transformer to end-users, with each level providing appropriate protection and control.
