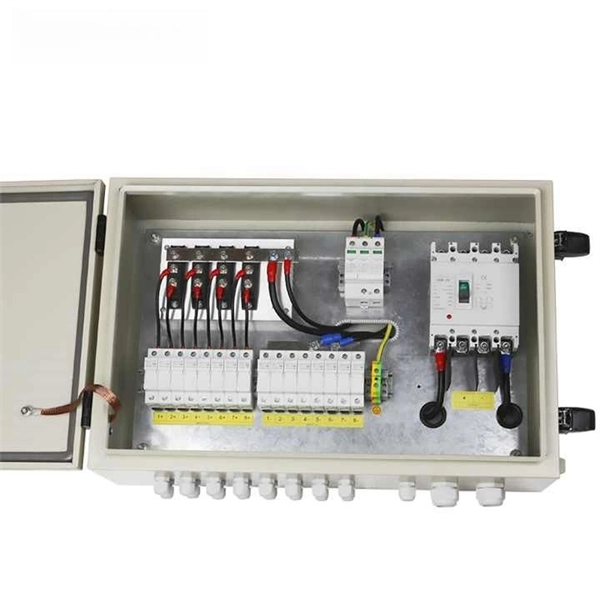

Incoming line connection method for explosion-proof distribution box

Fiber and communications infrastructure knowledge brief Published 10 Dec 2023

Prepared for preliminary research by the ROGER FIBRE knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

Use ATEX or IECEx-certified explosion-proof connectors, such as DIN valve connectors, circular M8/M12/M23, or specialized high-current plugs, designed for hazardous areas.

Connector Types and Standards

For incoming lines to explosion-proof distribution boxes, the connectors must be certified for hazardous environments. Common standards include ATEX, IECEx, and UL, ensuring safe operation in explosive gas or dust atmospheres. Typical connector types include: DIN Valve Connectors: Field wireable or molded cable assemblies, available in forms A, B, and C, with optional diodes, varistors, or rectifiers.

Circular Connectors (M8, M12, M23, 7/8”): Suitable for power and signal connections in Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas.

High-

Current ATE

X Plugs & Sockets: Rated for currents from 10A up to 680A and voltages up to 1,500V, often with integrated load-break switches for safe connection/disconnection under load. Material and ConstructionExplosion-proof connectors are typically made from copper-free aluminum or stainless steel, providing corrosion resistance, high impact strength, and durability in harsh industrial environments. They are designed to prevent sparks or heat generation that could ignite flammable atmospheres.

Installation Considerations

Ensure the connector matches the enclosure's protection type (Ex d for flameproof, Ex tb for dust protection) and the hazardous area classification. Use modular or field-wireable connectors for flexibility in installation and maintenance.

Verify the I

P rating and temperature range to ensure reliable long-term performance in the intended environment. Recommended SuppliersPepperl+Fuchs: Offers Ex d and Ex tb terminal boxes with compatible cable glands and connectors. Norstat: Provides a wide range of ATEX-certified DIN and circular connectors for hazardous areas.

MA

M: Supplies complete explosion-proof electrical equipment including distribution systems and connectors. Thorne & Derrick International: Stocks ATEX plugs, sockets, and decontactors for Zone 1 and Zone 2 applications. Using these certified connectors ensures safe, reliable power and signal distribution in explosion-hazardous environments while complying with international safety standards.
