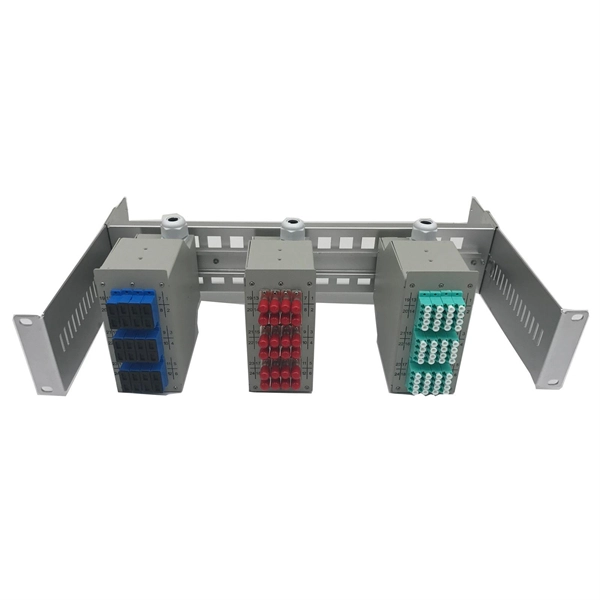

Fiber Optic Panel LC Dual-Port Connection Method

To connect an LC dual-port fiber optic panel, carefully clean and align the duplex LC connectors, insert them into the panel adapters, and secure the fibers while maintaining proper polarity and minimizing signal loss.

Understanding LC Dual-

Port Panels

An LC dual-port panel typically houses duplex LC adapters, allowing two fibers per port—one for transmit (Tx) and one for receive (Rx) signals.

L

C connectors use 1. 25 mm ferrules and a push-pull latch design, making them suitable for high-density installations in data centers or telecom racks. Panels can be pre-loaded with adapters or empty, allowing flexible deployment for single-mode or multimode fibers.

Step-by-

Step Connection ProcessPreparationEnsure a clean, dust-free workspace. Gather tools: LC fiber connectors, fiber strippers, alcohol wipes or fiber cleaning pens, cleaver, and testing equipment (power meter or OTDR),.

Fiber Stripping and Cleaning

Strip the fiber jacket carefully to expose the core without nicking the glass. Clean the fiber end with lint-free alcohol pads or a fiber cleaning pen to remove dust, oils, or fingerprints.

Connector Insertion

Insert the cleaned fiber into the duplex LC connector, ensuring proper alignment with the ferrules. Use a fiber insertion tool if needed to secure the fiber inside the connector.

Panel Connection

Insert the duplex LC connector pair into the corresponding LC adapter on the panel. Ensure the Tx and Rx fibers are correctly oriented to maintain polarity. Some panels use color-coded or keyed adapters to simplify this.

Securing and Managing Fibers

Route the fibers neatly along the panel's cable management guides to prevent bending or stress. Use the panel's clips or screws to secure the fibers and maintain stability.

Testing and Verification

Test the connection using a power meter or OTDR to verify signal loss is within acceptable limits. Inspect the connector end faces with a microscope to ensure no cracks or debris are present.

Labeling and Documentation

Label each fiber and port for future identification and maintenance. Record details such as fiber type, length, and connection points.

Best Practices

Avoid touching the fiber end face or exposing it to dust and moisture. Maintain proper bend radius to prevent signal degradation. Use polarity-reversible LC connectors if available to simplify Tx/Rx swaps without re-termination.

Consider uniboot LC cables for reduced cabling bulk in high-density panels. By following these steps, you can ensure a reliable, low-loss connection in your LC dual-port fiber optic panel, supporting stable network performance and easy maintenance.
