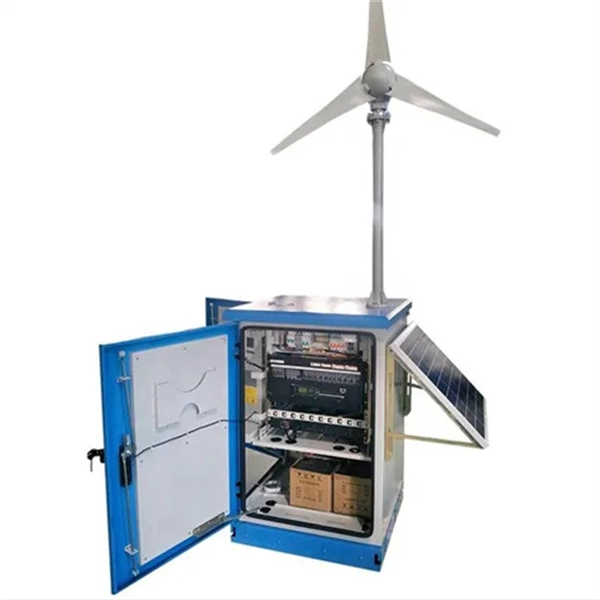

Requirements for Outgoing Wiring of Distribution Boxes

Outgoing wiring from a distribution box must comply with safety standards, proper circuit protection, correct cable sizing, and clear labelling to ensure safe and reliable electrical distribution.

Key Regulatory Requirements

Protective Devices: Each outgoing circuit must be protected by an appropriate device such as an MCB, RCBO, or RCD, depending on the type of load and risk assessment.

RCB

Os are preferred for individual circuit protection, reducing nuisance tripping and ensuring continuity of supply for other circuits. The devices must have suitable breaking capacity and comply with standards like BS EN 60898, BS EN 60947-2, or IEC 61439. Cable Sizing and Rating: Outgoing cables must be sized according to the load current, voltage drop limits, and installation conditions.

Factors such as ambient temperature, grouping of cables, and insulation type (PVC, XLPE, or MICC) must be considered. Voltage drop should not exceed recommended limits to maintain safe operation and efficiency. Earthing and Bonding: All outgoing circuits must have proper protective earth connections.

The earth conductors should be sized according to regulations, and all metallic parts must be bonded to prevent electric shock. Main Earth Terminals (MET) and Circuit Earth Conductors (CEC) must be installed and labelled clearly. Segregation and Containment: Live, neutral, and earth conductors should be organized to prevent accidental contact and maintain IP2X or IPXXB protection.

Barriers or enclosures should be used to separate circuits and maintain safety. Horizontal or vertical busbar arrangements must allow safe termination of single- or multi-pole devices. Labelling: Each outgoing circuit must be clearly labelled with its function and area served.

Labels must be permanent, legible, and durable, complying with BS 7671 Regulation 514. 9. 1.

Surge protective devices (SPDs) and RCDs must also be labelled to indicate their presence and test requirements. Installation Practices: Distribution boxes should be installed in dry, accessible locations with adequate ventilation, typically at a height of around 1. 5 meters.

Cable entries should be neat, with proper insulation and secure terminations. Modular designs are recommended for future expansion. Before energizing, visual inspections and multimeter tests should be performed to verify correct wiring.

Compliance and Certification: All distribution boards must be type-tested assemblies (e.g., BS EN 61439-3) and constructed from non-combustible materials for domestic installations. Replacement or new installations may require notification under local regulations and issuance of an Electrical Installation Certificate. Additional Considerations: For three-phase systems, coordination of protective devices and earth fault loop impedance must ensure automatic disconnection in case of faults.

Only faults belonging to the same circuit need to be considered for protection coordination. Surge protection, isolation switches, and clear circuit charts are essential for safe operation and maintenance. By following these regulations and best practices, outgoing wiring from a distribution box will meet safety, reliability, and compliance standards, minimizing the risk of electrical hazards and ensuring efficient operation of all connected circuits.
