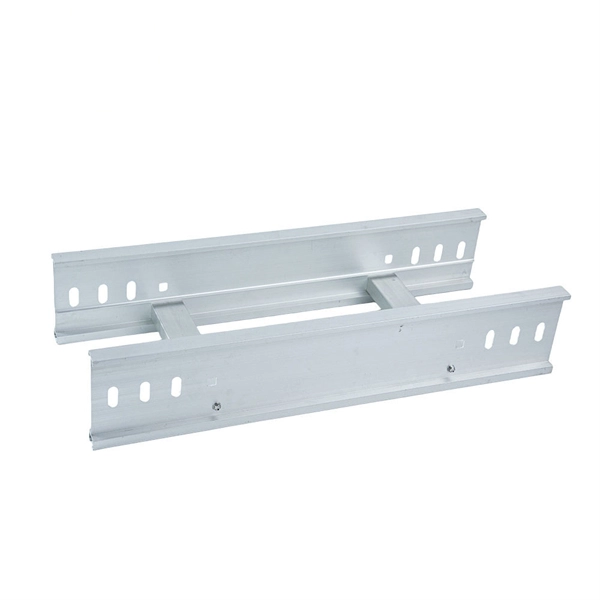

Installation of communication cable trays

Communication cable trays should be installed following a structured process that ensures safety, proper support, and compliance with electrical standards.

Planning and Preparation

Before installation, plan the cable tray route according to approved shop drawings, considering clearance, load capacity, and separation from other services. Verify that all materials are approved and available on-site, and ensure the work area is safe for installation. Coordination with other trades is essential to avoid conflicts during installation.

Selecting Tray Type and Size

Choose the appropriate tray type—ladder, perforated, or solid-bottom—based on cable type, load, and environmental conditions. Calculate the tray width and depth according to the number and size of cables to prevent overcrowding and overheating.

Mounting and Support

Install supports using GI threaded rods (10mm for trays below 300mm, 12mm for above 300mm) and slotted C-channels to secure the tray to ceilings or walls. Supports should be spaced 1. 5 to 3 meters apart depending on tray type and load.

Ensure trays are aligned, level, and securely fastened, with adequate space for cable installation and maintenance.

Tray Assembly

Assemble the tray system with all bends, tees, and accessories before laying cables. Use connectors and fittings to maintain continuity and structural integrity. For trays passing through walls or partitions, provide non-combustible covers for additional protection.

Cable Laying and Organization

Lay cables neatly within the tray, using cable ties or straps to separate by voltage and function. Leave slack for expansion or future adjustments. Ensure the number of cables does not exceed the tray's rated capacity according to national regulations.

Grounding and Bonding

For metal trays, perform proper grounding and bonding to maintain electrical safety and compliance. Use bonding jumpers across tray sections to ensure continuity.

Documentation and Inspection

Label all cables clearly and maintain updated wiring maps for troubleshooting and audits. Conduct a final inspection to check for loose clamps, misalignment, overfilled sections, or unsupported spans.

Maintenance

Perform routine checks for corrosion, loose wires, or damaged supports to extend the tray system's lifespan and ensure reliable operation. By following these steps, communication cable trays can be installed safely, efficiently, and in compliance with electrical standards, providing a scalable and maintainable cable management system.
