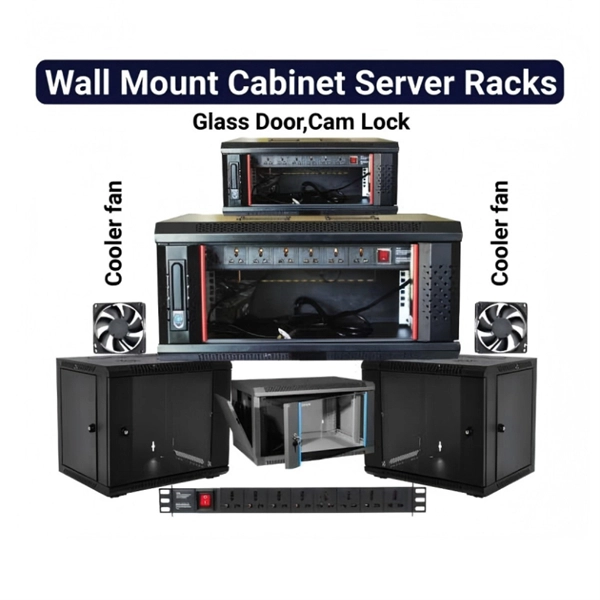

Network Rack Frame Thickness Standards

Network rack frames typically follow ANSI/EIA RS-310-D, IEC 60297-2, and DIN 41494 standards, with steel thickness commonly ranging from 1. 2 mm to 2. 0 mm for structural rails.

Standardization Overview

Network racks, particularly the widely used 19-inch racks, are standardized to ensure compatibility across servers, switches, and other rack-mountable equipment. The rack width is fixed at 19 inches (482. 6 mm), while the height is measured in rack units (U), where 1U equals 1.

75 inches (44. 45 mm). Depth varies depending on equipment and cooling requirements, typically ranging from 600 mm to 1200 mm (24–48 inches).

Frame and Rail Thickness

The frame thickness of network racks is critical for structural integrity, especially when supporting heavy servers or networking equipment. While exact thickness can vary by manufacturer and rack type (two-post vs. four-post), common specifications include: Front and rear mounting rails: Usually made of cold-rolled steel with a thickness of 1. 2 mm to 2.

0 mm, providing sufficient rigidity for standard 1U–4U equipment. Side panels and top/bottom frames: Often 1. 0 mm to 1.

5 mm steel, balancing strength with weight and airflow considerations. Perforated doors and panels: Typically 1. 0 mm, allowing airflow while maintaining structural support.

Compliance with StandardsThree major standards govern rack construction: ANSI/EIA RS-310-D: Defines the hole spacing, rail dimensions, and mounting requirements for North American racks, ensuring compatibility with 1U/2U equipment.

IE

C 60297-2: Provides international specifications for 19-inch racks, including rail spacing, mounting hole patterns, and structural requirements, facilitating global interoperability.

DI

N 41494 (Parts 1 and 7): Common in industrial and automation environments, detailing rack frame construction, mounting, and load-bearing requirements.

Practical Considerations

Load capacity: Thicker rails (closer to 2. 0 mm) are preferred for racks supporting heavy servers or storage arrays. Rack type: Four-post racks generally require thicker rails than two-post racks due to higher load distribution.

Customization: OEMs may offer reinforced frames or adjustable rail thickness for specialized applications, while still adhering to ANSI/EIA or IEC standards.

Summary

Network rack frame thickness is not universally fixed but generally falls within 1. 2–2. 0 mm for mounting rails and 1.

0–1. 5 mm for panels, ensuring structural integrity while complying with ANSI/EIA RS-310-D, IEC 60297-2, and DIN 41494 standards. Proper selection of frame thickness is essential for supporting equipment weight, maintaining stability, and ensuring long-term reliability in data centers and industrial installations.
