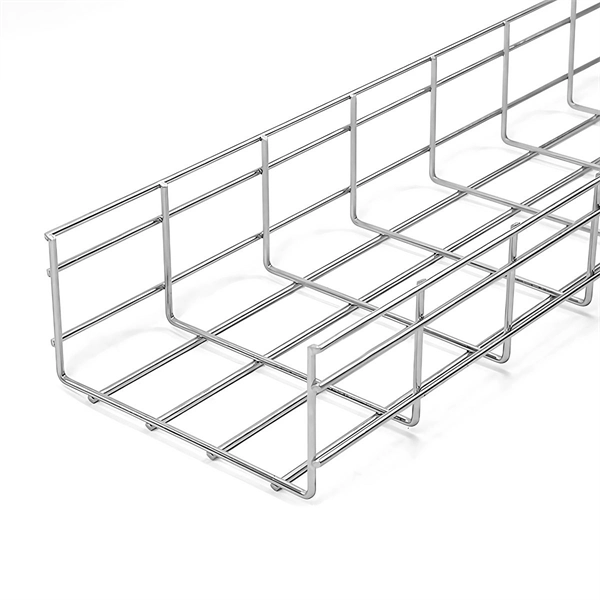

Installation of cable trays in large factory buildings

Proper cable tray installation in factory buildings involves careful planning, selecting the right tray type, precise mounting, and organized cable routing to ensure safety, accessibility, and compliance with standards.

Planning and Preparation

Before installation, review approved shop drawings to determine tray layout, lengths, and locations within electrical rooms, plant rooms, and service corridors. Inspect all materials upon delivery to ensure they match approved specifications and are free from damage. Store trays horizontally on flat surfaces with timber supports at intervals of one meter, protecting them from moisture and sunlight.

Selecting Tray Type and Material

Choose the appropriate cable tray type based on load, ventilation, and environmental conditions: Ladder trays: Ideal for heavy cables and excellent ventilation. Perforated trays: Suitable for lighter loads and better airflow. Solid-bottom trays: Used where heat buildup is minimal or aesthetics are important.

Materials vary depending on corrosion resistance and mechanical strength: Aluminum: Lightweight, corrosion-resistant. Galvanized or stainless steel: High strength and durability in industrial environments.

Mounting and Support

Secure trays using brackets, clamps, or hangers attached to walls, ceilings, or floors. Support spacing typically ranges from 1. 5 to 3 meters, depending on tray type and load.

Ensure trays are level, straight, and properly aligned, using connectors and fittings for long runs. Avoid sagging to maintain safety and structural integrity.

Cable Routing and Installation

Calculate tray sizing based on cable count, type, and spacing to prevent overheating and maintain ampacity. Lay cables neatly, separating by voltage and function using cable ties or straps. Leave slack for expansion or future adjustments.

Use rollers, sheaves, or pulling lubricants for long runs to prevent jacket abrasion and conductor damage. Maintain minimum bend radius at tray exits to avoid stress on cables.

Compliance and Safety

Follow NE

C Article 392 and local electrical codes for fill capacity, grounding, and bonding requirements. Cable trays are supports, not walkways; avoid using them to carry personnel. Ensure installation is performed by competent personnel familiar with electrical safety and standard practices.

Final Checks

After installation, inspect all trays and cables for proper alignment, secure fastening, and compliance with design specifications. Verify that all supports, fittings, and cable routing meet safety and operational requirements before energizing the system. By following these steps, factory buildings can achieve a safe, organized, and maintainable cable tray system that supports efficient electrical distribution and future expansion.
