Spectrometer Connection Test

Fiber and communications infrastructure knowledge brief Published 06 Nov 2023

Prepared for preliminary research by the ROGER FIBRE knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

A spectrometer connection test ensures the instrument is properly powered, connected, and ready to acquire accurate data. Initial Setup and Power-OnUnpack and place the spectrometer in a stable, prepared workspace. For some instruments like the Thermo Scientific Nicolet Summit, wait 24 hours after removing the shipping bag to prevent condensation damage to internal optics (Thermo Scientific).

Connect the power supply to a properly grounded AC outlet and turn on the instrument. Observe the instrument's status indicators, such as the LightBar on the Summit spectrometer, which cycles green during warm-up and turns solid green when ready. Ensure all cables are properly connected: power, data (USB or Type-B), and any fiber optic or probe connections.

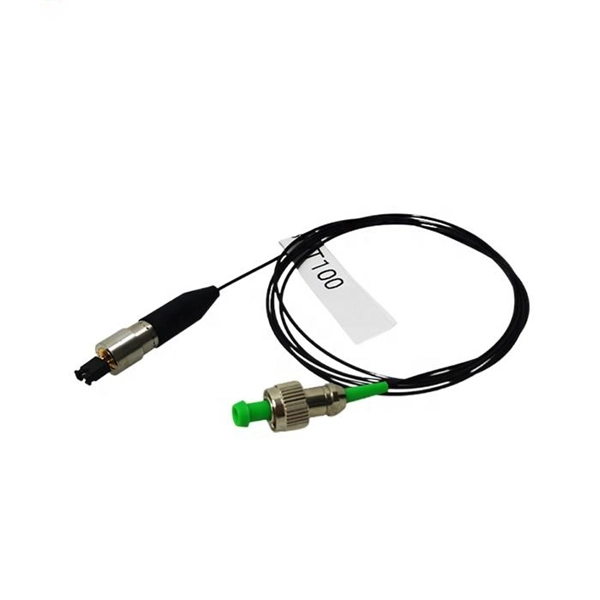

For fiber optic spectrometers like the USB4000, align and secure the fiber optic probe correctly to avoid bending or misalignment.

Software Connection and Calibration

Install the spectrometer software on your computer and select the option to connect the probe or instrument. Ensure the software recognizes the device. Perform a dark reference measurement to establish a baseline with no light input.

Collect a white reference using a standard reflective surface to calibrate the instrument for accurate intensity readings. Run a sample measurement to verify that the spectrometer is acquiring data correctly. Follow the sequence: Dark → White → Sample.

Troubleshooting Common Connection Issues

No data or communication errors: Check that all cables are securely connected and that the correct drivers are installed. Instrument not powering on: Verify the power source and ensure the spectrometer is properly grounded. Poor or inconsistent readings: Recheck probe alignment, clean optical surfaces, and repeat the dark and white reference measurements.

Key Notes

Always handle fiber optic cables carefully to prevent damage. Follow the manufacturer's recommended warm-up time before performing measurements. Consult the user manual for instrument-specific instructions, as procedures may vary between models like the Spectrum Two N, Nicolet Summit, or USB4000.

Performing these steps ensures that your spectrometer is correctly connected, calibrated, and ready for accurate spectral measurements.
