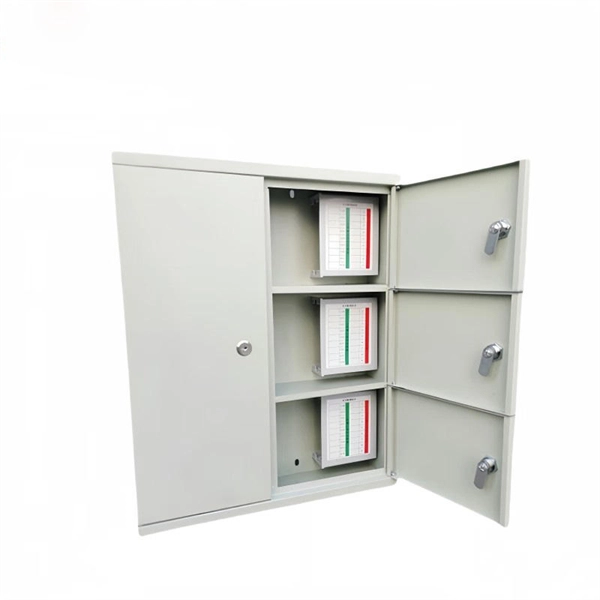

Low-voltage distribution box cable selection standard

For low-voltage distribution boxes, use cables rated up to 1 kV with copper or aluminum conductors, appropriate insulation (PVC, XLPE, or LSZH), and armoring if mechanical protection is required.

Key Considerations

Voltage Rating: Low-voltage cables typically operate at 50 V to 1 kV, with most distribution boxes using 230/400 V systems in Europe or 600 V-rated cables in the U. S. Ensure the cable is rated for the system voltage to prevent insulation breakdown and safety hazards.

Conductor Material: Copper is preferred for its high conductivity and flexibility, while aluminum may be used for cost-sensitive or larger feeder cables. Insulation Type: Common insulation materials include: PVC (Polyvinyl Chloride): Standard for indoor installations, resistant to moisture and chemicals.

XLP

E (Cross-Linked Polyethylene): Higher temperature tolerance (up to 90°C), suitable for wet or dry conditions.

LSZ

H (Low-Smoke, Zero-Halogen): Ideal for densely populated or enclosed areas to reduce toxic fumes during fire. Armoring: Armored cables (e.g., SWA – Steel Wire Armored) are recommended for incoming mains or areas where mechanical damage is possible, such as cable trays, floor ducts, or outdoor installations. Cable Configuration: Single-core cables allow flexible routing and separate phase installation.

Multicore cables (3-core, 4-core) are common for three-phase systems and simplify installation in conduits or trays. Environmental Factors: Consider whether the cable will be installed indoors, outdoors, in conduit, or buried. Outdoor or direct-burial cables require UV-resistant and moisture-resistant jackets, while indoor cables may need plenum or fire-rated jackets for safety.

Application-

Specific Cables: Control and instrumentation: Shielded cables prevent electromagnetic interference. Data and communication: CAT5e, CAT6, or coaxial cables for network and CCTV systems.

Audio/

Video: Speaker wires or specialized low-voltage cables for home theater or PA systems.

Summary Recommendation

For a typical low-voltage distribution box: Use copper conductors with PVC or XLPE insulation. Choose armored cables for mains feeds or exposed runs. Ensure the voltage rating matches the system (commonly 600 V or 1 kV).

Select multicore or single-core based on phase configuration and installation method.

Consider LSZ

H or fire-rated jackets in enclosed or high-density areas for safety. Proper selection ensures safety, compliance with electrical codes, and long-term reliability of the low-voltage distribution system.
