Construction Standards for Dual-Channel Optical Cables

Dual-channel optical cables must follow standardized installation, grounding, and polarity practices to ensure reliable performance and compliance with industry standards. Installation and Clearance RequirementsDual-channel optical cables, often deployed in joint-use or utility pole environments, must maintain minimum clearances to ensure safety and accessibility. For example, strand attachment heights on utility poles are specified in construction drawings, with a minimum of 18 feet above traveled roads and 40 inches minimum clearance from energized conductors or utility pole power lines.

Installation should avoid attaching guying to existing communication anchors unless explicitly permitted, and auxiliary eye attachments should not be added to existing anchors. In-span storage systems for dual-channel cables typically have diameters ranging from 0. 510 to 0.

730 inches, depending on the design and RUS-approved drawings.

Grounding and Bonding

Proper grounding and bonding are critical for dual-channel optical cables to prevent electrical hazards and maintain signal integrity. Standards such as FO-GB in NOANET guidelines provide detailed instructions for grounding in joint-use installations. All metallic components, including messenger wires or armored cable elements, must be bonded according to approved specifications.

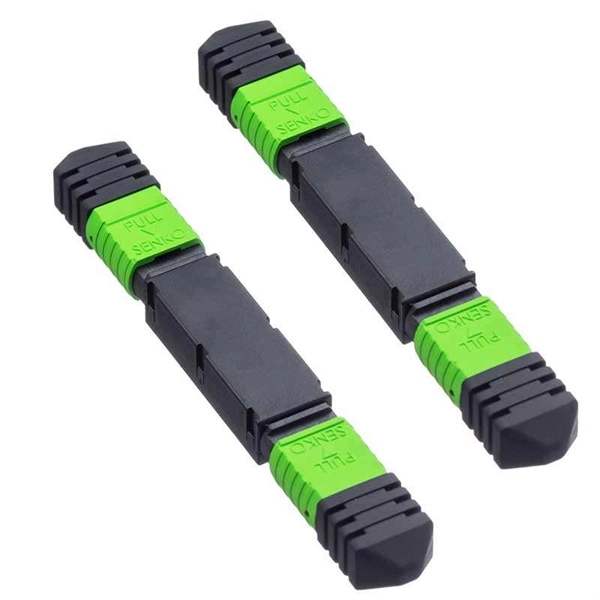

Polarity and Fiber Positioning

Maintaining correct polarity is essential for dual-channel systems to ensure transmitters and receivers are properly aligned. ANSI/TIA-568. 3-E specifies two primary methods for duplex fiber polarity: Consecutive-fiber positioning: Fiber adapters are installed in opposite orientations on each end (A-B, A-B on one end and B-A, B-A on the other), with fibers attached in consecutive order (1, 2, 3, 4…) on both ends.

Reverse-pair positioning: Fiber adapters are installed in the same orientation on each end, with fibers attached in consecutive order on one end and in reverse-pair order (2, 1, 4, 3…) on the other. Consistency in the chosen polarity method is recommended throughout the installation to avoid connectivity issues.

Material and Equipment Standards

All materials and equipment must be new, first-quality, and free from defects, sourced from manufacturers experienced in outdoor fiber optic systems. Armored or self-supporting cables must be on the RUS acceptable material list, and reels should contain a single continuous length of cable with proper labeling for identification, length, and date of manufacture. Loose tube cables require the use of De-Gel solvent to remove water-blocking gel before splicing or termination, ensuring no damage to the fiber or outer jacket.

Compliance and Documentation

Installations must comply with industry standards, manufacturer recommendations, and local codes. Documentation should include RUS acceptance, construction drawings, and adherence to ANSI/TIA and NOANET guidelines. Any deviations or omissions must be reported to the supervising engineer for approval.

Summary

For dual-channel optical cables, adherence to clearance, grounding, polarity, material quality, and documentation standards is essential. Following ANSI/TIA-568. 3-E for polarity and NOANET construction standards for joint-use installations ensures reliable performance, safety, and regulatory compliance.
