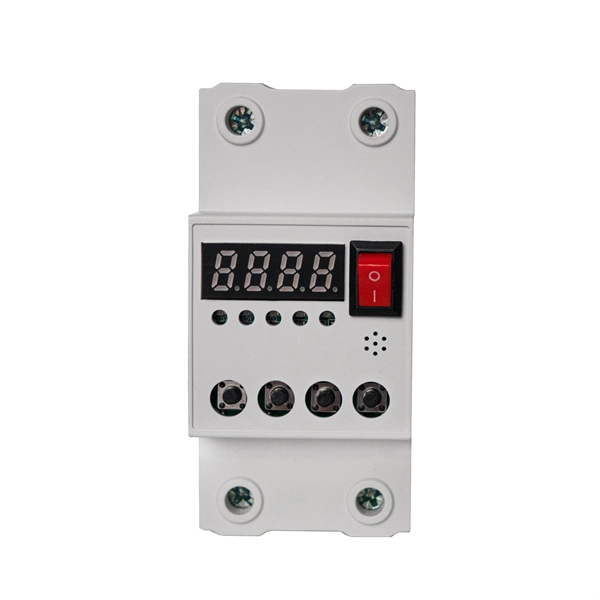

The distribution box was installed in a residential building

A distribution box safely distributes electricity to all circuits in a home, protects against overloads, and must be installed according to safety standards and accessibility requirements.

Purpose and Components

A distribution box, also called a distribution board or breaker box, is the central hub of a residential electrical system. It receives power from the main supply and divides it into individual circuits, each protected by circuit breakers or fuses. Key components include the main switch, circuit breakers, residual current devices (RCDs), surge protection devices, and sometimes smart home modules or time relays.

These components ensure protection against overloads, short circuits, and leakage currents, while allowing monitoring and control of individual circuits.

Installation Requirements

Proper installation is critical for safety and compliance. The box should be mounted in a dry, accessible, and well-ventilated location, typically at a height between 1 meter and 1. 8 meters to allow easy operation of switches and meters.

The enclosure must be level and securely fastened, and wiring should be neat, with correct cable sizing, grounding, and labeling. Protective devices must be installed according to local standards, such as DIN VDE 0100 in Germany or IEC/NEC codes elsewhere.

Safety and Compliance

The distribution box must comply with relevant electrical standards to ensure safety. This includes protection against electric shock, thermal effects, and proper testing before operation. Insulation resistance, loop impedance, and functional tests of all protective devices are required before energizing the system.

In T

T earthing systems, RCDs may be required to supplement earth leakage protection, and surge protection is recommended for sensitive electronic equipment.

Maintenance and Expansion

Regular inspection and maintenance are essential for long-term reliability. Expansion of the distribution box, such as adding circuits for a garage or electric vehicle charging, should be carefully planned to avoid overloading older systems. If space is insufficient, a sub-distribution board or an extension of the main board may be necessary.

Summary

Installing a distribution box in a residential building ensures safe, organized, and efficient distribution of electricity. Proper placement, adherence to standards, correct wiring, and inclusion of protective devices are essential to prevent hazards, facilitate maintenance, and accommodate future electrical needs.
