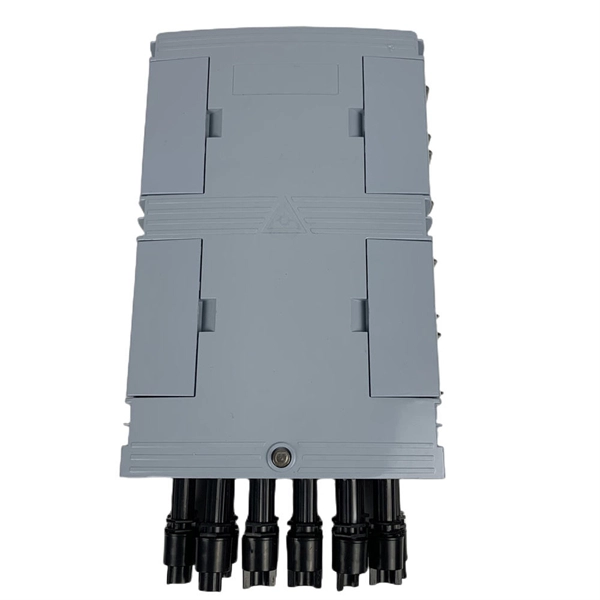

Outdoor distribution box without compensation grounding

Installing an outdoor electrical distribution box without proper grounding can create serious safety hazards and violate NEC requirements.

Importance of Grounding

Grounding in outdoor distribution boxes ensures that fault currents are safely directed to the earth, reducing the risk of electric shock, fire, or equipment damage. Outdoor boxes are exposed to moisture, rain, and conductive surfaces, which increases the likelihood of electrical faults. Without compensation grounding, any leakage or short circuit may energize the enclosure, posing a direct shock hazard to anyone touching the box.

Code Compliance

According to NEC Article 312, outdoor distribution boxes must have a grounding system with separate ground and neutral bars.

NE

C 312. 6 specifies that all metal parts of the enclosure must be bonded to the grounding system. Omitting grounding can result in code violations, failed inspections, and potential liability in case of accidents.

Additionally, outdoor enclosures must meet NEMA or IP ratings to prevent water ingress, which can exacerbate hazards if grounding is absent.

Operational Risks

Electrical Shock: Ungrounded metal enclosures can become live during a fault. Equipment Damage: Sensitive devices inside the box may fail due to transient voltages or lightning strikes. Corrosion and Moisture Issues: Water ingress can create unintended conductive paths, increasing the risk of short circuits.

Reduced System Reliability: Without grounding, overcurrent protection devices may not operate correctly during faults, compromising safety.

Best Practices

Always install a dedicated grounding conductor connected to a grounding rod or system. Use UL-listed outdoor-rated enclosures with proper NEMA or IP ratings to prevent moisture penetration. Ensure bonding of all metallic parts inside the box, including bus bars and panel frames.

Consider surge protection devices to mitigate transient voltages in outdoor environments. For nonmetallic boxes, verify that internal components are properly grounded according to manufacturer instructions.

Conclusion

Operating an outdoor distribution box without compensation grounding is unsafe and non-compliant with electrical codes. Proper grounding is essential for personnel safety, equipment protection, and regulatory compliance. Always follow NEC guidelines and manufacturer specifications when installing outdoor electrical distribution systems.
